Using Juniper Network Connect on Ubuntu

What is Network Connect?

Network Connect is a software package from Juniper Networks that interfaces with its Secure Access hardware and provides a Virtual Private Network (VPN) solution. There are two software products that connect to Secure Access servers: Windows Secure Application Manager which, as you might guess, runs on Microsoft Windows; and Network Connect which runs on other platforms, in particular GNU/Linux.

So, GNU/Linux is supported! Great! Well, sort of. Juniper has fallen into the common trap of supporting Red Hat Enterprise Linux and calling it good enough. It's quite frustrating, since with an extra hour or two of effort these companies could create a portable solution. I realize that support costs money, but even if they only officially supported Red Hat Enterprise, it wouldn't hurt them to go the extra couple of centimeters necessary to provide a more generic implementation.

Luckily, the actual VPN software works fine on Ubuntu; it's the invocation script and especially the installer that are utterly broken. However, it's a relatively straightforward proposition to simply avoid using them; I've created a shell script which will allow you to connect and disconnect without needing to go through the broken scripting that comes with Network Connect. Here's how you use it.

Making It Work

Environmental Requirements

I have tested this on every Ubuntu release starting with 6.06, up to and including the current Karmic Koala (9.10) beta release. I have used on both 32-bit and 64-bit systems.

Although I haven't tried this on Kubuntu, there is support for KDE that I've put together from suggestions emailed to me, plus information I found in web documentation. I haven't tested it myself but hopefully it works.

In fact, there's nothing about this solution that requires Ubuntu per se. You should be able to use it with little adaptation on almost any GNU/Linux distribution.

The version of Network Connect I have is:

$ ~/.juniper_networks/network_connect/ncsvc --version
Juniper Network Connect Server for Linux.
Version         : 1.2
Release Version : 6.1-0-Build13103
Build Date/time : May  6 2008 21:34:46
Copyright 2001-2008 Juniper Networks

I know that some older versions require extra steps (for example, 1.0 versions require the installation of Motif libraries). I can no longer test with these older versions so I can't say how well they work. If you have versions prior to 1.2 I strongly suggest you request that your IT department upgrade you to a newer release.

Package Requirements

In order to install the package and to run the graphical VPN control utility, you will need a 32-bit Java runtime environment and a browser plugin. Personally I need this for other reasons as well and I've been using the Sun JRE, but I suppose others might work as well. I've heard that people have had issues with OpenJDK, but YMMV.

On 32-bit Ubuntu I use:

sudo aptitude install sun-java6-plugin sun-java6-jdk sun-java6-jre

On 64-bit Ubuntu I use the above plus this:

sudo aptitude install ia32-sun-java6-bin

Note that older versions of Ubuntu might not support Java 6; in that case it works fine to replace java6 with java5 in the above package names.

After you install the browser plugin, you'll need to restart FireFox.

A critical aspect of the VPN is that your DNS resolution information is reset to point to the DNS server of the VPN; this allows you to resolve internal hostnames that aren't registered outside the VPN. Usually, when you exit the VPN tool it will restore your original DNS settings. However, I have seen this fail; when that happens your system can no longer resolve any hostnames. It seems like the network is broken but it's actually a trivial fix... if you know what your original DNS server was. I recommend making a copy of the /etc/resolv.conf file on your system so you can copy it back later if necessary.

Step 1: Install My Script

I wrote a shell script to simplify the install and invocation of the Network Connect VPN; using the web interface to connect and the broken install script is too annoying.

First you need to install my script onto your system:

Download the junipernc script

Put it somewhere on your PATH; I typically create ~/bin and add that to my PATH for these sorts of things. Don't forget to ensure the script is executable after you download it.

If you didn't understand the previous paragraph, then open up a terminal (use Applications -> Accessories -> Terminal) and enter these commands; none of them should give you any error message. You will need to type your password when prompted (after the sudo command)

wget -q -O /tmp/junipernc http://mad-scientist.net/junipernc
chmod 755 /tmp/junipernc
sudo cp /tmp/junipernc /usr/bin

Step 2: Install Network Connect Software

The Network Connect software is installed automatically when you first connect to the server. Although this install will fail on Ubuntu due to the fairly stupid scripting Juniper provides, it's still necessary to go through this step to obtain the software.

So, connect to your Juniper VPN server with FireFox and log into the VPN. You should have received instructions from your IT department or whomever manages the server on how to do this.

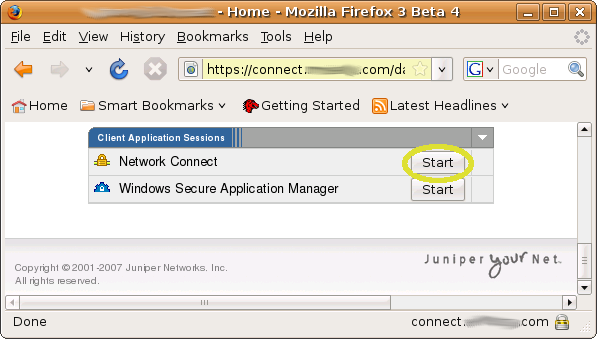

Once it's done you'll see something like this (maybe after some other links); Click the "Start" button next to "Network Connect":

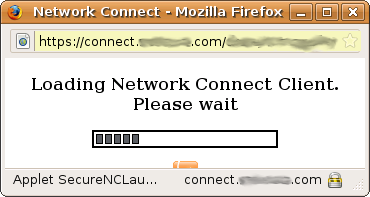

The Network Connect software will download:

The software will pop up a terminal window asking for the root password:

Of course, on Ubuntu root doesn't have a password and the script is not smart enough to consider using sudo. So ignore this: hit ENTER and when it asks if you'd like to try again, hit ENTER again. You will get an error message about SSL; click OK. This will cause the startup to fail, but that's fine because it's left behind the downloaded software which we can then use with a more portable installer.

Before continuing, log out from the VPN connection in the browser. There should be some kind of exit button on the page. If you can't find it, exiting your browser should do it. We won't be needing it anymore anyway.

Step 3: Run My Script

To complete the installation, you should invoke my junipernc script. To do this, open a terminal window (Applications -> Accessories -> Terminal) and type junipernc. Whenever the script runs it checks to be sure everything is set up and, if not, will do it for you.

The first time you run it, you will need to enter your GNU/Linux account password to allow root privileges to be assigned to the Network Connect utility.

Next, you will be asked for a server name; this should be the same server you browsed to in the previous step.

Next, you will be asked for a user name; enter the username you used to log into the Juniper connect web site.

Finally, you will be asked for a VPN service realm. If there is a default value that is almost certainly the value you should use: the script obtains this value by querying your server. If there is no default given you will need to contact your IT department for help with this.

At this point, the software should be installed and configured. These values will be saved and you won't need to go through these steps again. Now the script will automatically try to start the VPN, as described in the next section.

Startup

Whenever you run the junipernc script it will prompt you for your password; my company uses SecurID so we enter a personal PIN plus the value provided by the SecurID fob. So, that's what the script asks for. However if your company uses just a simple password it should work fine to provide it here as well.

The GUI Network Connect tool will start and you should get a connection. Yay!!

My company limits the amount of consecutive time you can be connected so I need to restart my connection every so often. I arrange for this in my script by having it detect when the Network Connect applet has exited, and asking if you want to restart the VPN. If you say yes, it will ask for your password information again and restart the VPN. As long as I'm there when the timeout happens I can almost always restart the connection without losing any of my sessions (my server is configured to give me back the same IP address, as long as someone else didn't take it).

Non-GUI Mode

The junipernc script supports (sort of) a non-GUI mode. Invoke it with the -nogui flag to use this mode. The nice thing about this is that it avoids the need for Java at all. The bad thing is you don't have any way to track the status of your connection, including when it's active or not.

Uninstall

The script also can perform an "uninstall"; invoke it with the -uninstall flag. This will delete all the configuration AND the complete installed version of Network Connect. You'll have to start over with step 1 of the installation to re-install.

Troubleshooting

Unfortunately I don't have a lot to say here. If things don't work for you you might try asking on one of the Ubuntu forum threads dedicated to this subject.

If you can't access any network hosts after bringing down the VPN, it's probably because your DNS server was not reset properly. You did take my advice above and make a backup copy, right? Suppose you called the backup ~/resolv.bak; then you'd run this command to restore your network:

$ sudo cp $HOME/resolv.bak /etc/resolv.conf
